    WinForms Getting Started Guide


    Windows.Forms is part of a standard Mono installation. Since Windows.Forms is under active development you might be interested in using the latest version available from the git repository to test.

    To use the very latest version, you have to build mcs from git. You can get the latest sources from our git repository:

    To build Windows.Forms from source, you need:

    • The latest Mono package.

    • The latest libgdiplus library. Not needed on Windows XP since it includes gdiplus.dll and for Windows 2000 it can be downloaded from MSDN.

    [Paul Johnson provides a nice writup on how to build from source here]

    Winforms Example

    As there are plenty of great articles and books on Windows Forms programming, the topic will not be covered in-depth. The following is just a simple Winforms program to test with.

    using System;
    using System.Drawing;
    using System.Windows.Forms;
    public class HelloWorld : Form
        static public void Main ()
            Application.Run (new HelloWorld ());
        public HelloWorld ()
            Button b = new Button ();
            b.Text = "Click Me!";
            b.Click += new EventHandler (Button_Click);
            Controls.Add (b);
        private void Button_Click (object sender, EventArgs e)
            MessageBox.Show ("Button Clicked!");

    If you save this code as hello.cs, you would compile it like this:

    mcs -pkg:dotnet hello.cs

    Using mcs to compile produces a .Net 1.1 assembly. To create a .Net 2.0 assembly, use gmcs:

    gmcs -pkg:dotnet hello.cs

    Either compiler will create “hello.exe”, which you can run using:

    mono hello.exe

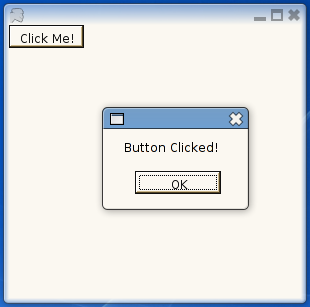

    Results running on openSUSE 10.2

    And this will be the results.
